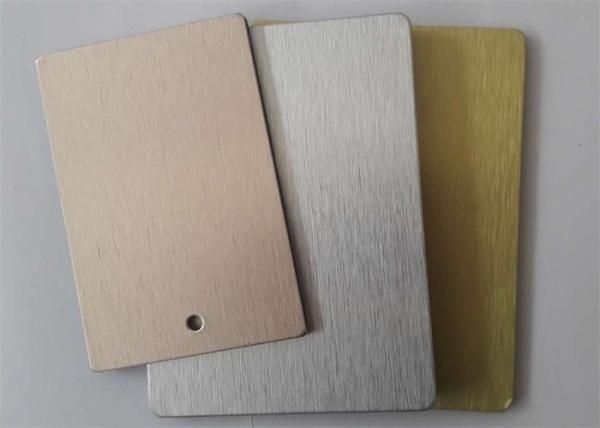

Richful Color Flat Aluminum Sheet , Brushed Aluminum Laminate Sheet
Film Protective
Description
The series product working process is brush finished at first base
on the basic aluminum plate, then combine specially powder
oxidation process, produce the brush finished aluminum plate. The
series with rich color, brush style can be make base on OEM, strong
bending, fit for subsequent printing process.
| Alloy | 1050 1060 1070 1100 3003 3004 3005 3105 5052 5005 5083 5086 6061
6063 |
| Temper | 0,H12,H14,H16,H18,H22,H24,H26,H32,H34 |
| Temperature Resistance | Over 250ºC |
| Bending | GB 0-1T |
| Neutral salt spray test | 72h |
| High temperature and humidity resistance test | 72h |
| Aluminum Thickness | 0.14mm ~ 0.80mm |
| Shape | Coil, sheet |
| Color | Silver, gold, brown,rose-gold, black, blue and customized color |
| Surface | Brushed finished |
| Coating | PE |
| Coating Thickness | 4-8 micron (μ) |
| Width | 40mm ~ 1300mm |
| Reflective Rate | 89%~95% |
| Durability | Highly durable, long impression available |
| Applications | Decorations used, ceilings, curtain walls, moscaics,advertisement
word of edge,name plate,household appliance |
Alloy Chemical Composition
| CHEMICAL COMPOSITION |
| ALLOY | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | AI |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | / | / | 0.05 | / | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | / | / | 0.05 | / | 99.60 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | / | / | 0.04 | / | 99.70 |
| 1100 | Si+Fe:0.95 | 0.05-.020 | 0.05 | / | / | 0.10 | / | / | 99.00 |
| 2024 | 0.50 | 0.50 | 3.80-4.90 | 0.30-0.90 | 1.20-1.80 | 0.10 | / | 0.25 | 0.15 | Remainder |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | / | / | / | 0.10 | / | Remainder |
| 3105 | 0.60 | 0.70 | 0.30 | 0.30-0.80 | 0.20-0.80 | 0.20 | / | 0.40 | 0.10 | Remainder |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.50-1.10 | 0.10 | / | 0.25 | / | Remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.20-2.80 | 0.15-0.35 | / | 0.10 | / | Remainder |
| 5083 | 0.40 | 0.40 | 0.10 | 0.40-1.00 | 4.00-4.90 | 0.05-0.25 | / | 0.25 | / | Remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.60-3.60 | 0.30 | / | 0.20 | / | Remainder |
| 6061 | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.80-1.20 | 0.04-0.35 | / | 0.25 | / | Remainder |
| 6063 | 0.20-0.60 | 0.35 | 0.10 | 0.10 | 0.45-0.90 | 0.10 | / | 0.10 | / | Remainder |
| 6082 | 0.70-1.30 | 0.50 | 0.10 | 0.40-1.00 | 0.60-1.20 | 0.25 | / | 0.20 | / | Remainder |
| 7050 | 0.12 | 0.15 | 2.00-2.60 | 0.10 | 1.90-2.60 | 0.04 | / | 5.70-6.70 | 0.06 | Remainder |
| 7075 | 0.40 | 0.50 | 1.20-2.00 | 0.30 | 2.10-2.90 | 0.18-0.28 | / | 5.10-6.10 | 0.20 | Remainder |
Shipping Port: Shenzhen, guangzhou, changsha,shanghai or customized port.
Shipping: By sea or by air, according to the request.
Usually based on FOB quotation, CIF & CNF quotation request is
acceptable.
Shipping Docs: Packing list, commercial invoice, bill of loading, C/O or Form.E
per request.
Our company
Hunan Yorto Advanced Materials Technology Co., Ltd. was established
in September 2007. Company is located in Changsha, Hunan
province,China. The main business is mirror aluminum,brushed
aluminum,oxide aluminum and sublimation aluminum.
The company adopts the integration business model of
“R&D—production---direct selling” and determined to walk the
road of independent innovation, belongs to the typical independent
innovation enterprise.
Products are widely used in indoor integrated ceiling, lamps
reflective, nameplates, mirror aluminum-plastic plate,
thermoelectric solar reflective material and so on.
Please feel free to contact us for more detail information,We are
always ready to serve you.
